Find the matching mount for your flat panel

Know your Mount model number?

Mount
D3-EXT
Max load capacity:250 Ibs Max Fits 70"flat panel displays
--------------------------------------------------------------------------------------------

These manuals are in the PDF file format and require Acrobat Reader for viewing. If you do not have Acrobat Reader, you can download and install the current version free by clicking the Acrobat icon below.

--------------------------------------------------------------------------------------------
Download......

		D3-EXT Technical
		D3-EXT Install

HIT:4292

Screen sizes

VESA

Load capacity

Swivel

Tilt angle

Rotation

Designed

Materials

Stud

70"

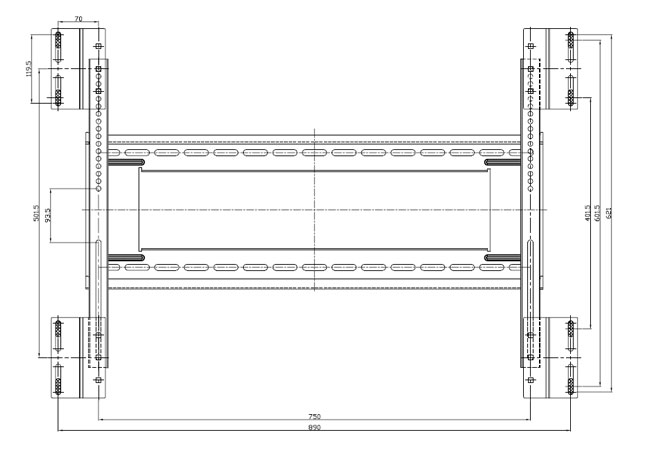

900×600

250 lbs(113.5kgs)

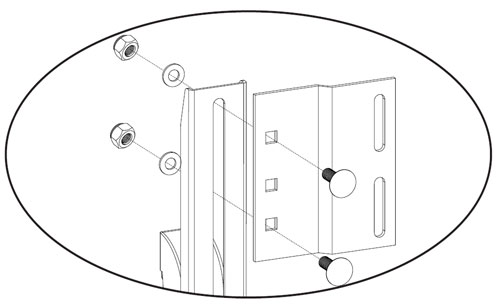

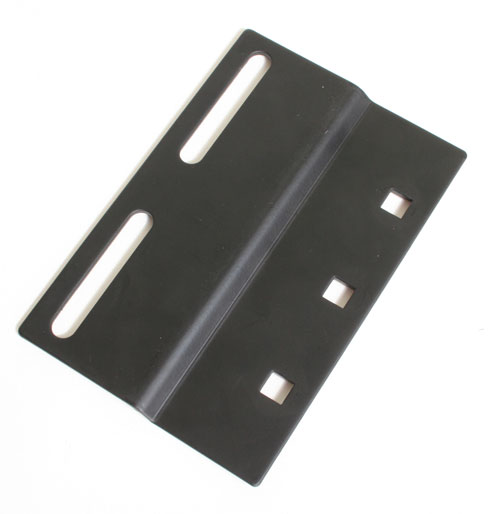

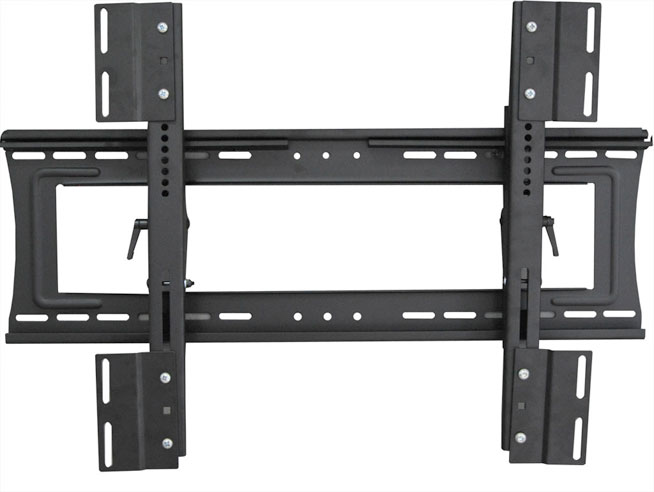

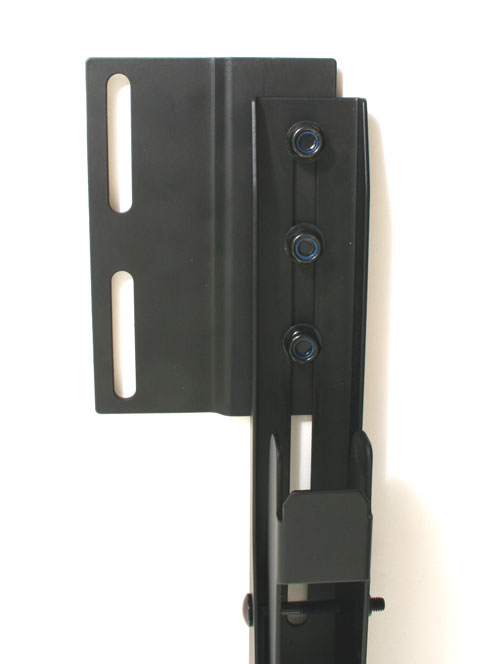

The D3-EXT Extender Plates allow Mounts to be used with larger flat panel displays. The wider bolt patterns on some TVs may be outside the maximum range of our extra large mounts The D3-EXT Extender Plates solve the problem by extending the reach of the TV mounting brackets.

- Solid steel construction.
- Black powder-coated paint finish.
- For use with Strong SM-T/F, Medium, Large and X-Large Mounts.
- Also compatible with CS-Series Mounts
- (Not compatible with Low Profile Mounts).
- Maximum load capacity: 250lbs.
- (4) Plates and all hardware included.
