Know your Mount model number?
Mount
W65-T
VESA:600X800 Max Load:150lbs
--------------------------------------------------------------------------------------------

These manuals are in the PDF file format and require Acrobat Reader for viewing. If you do not have Acrobat Reader, you can download and install the current version free by clicking the Acrobat icon below.

--------------------------------------------------------------------------------------------
Download......




      HIT:3847
W65-T
Screen sizes
VESA
Load capacity
Swivel
Tilt angle
Rotation
Designed
Materials
Stud
42"-90"
100x100mm, 100x200mm, 200x200mm, 200x400mm, 300x400mm, 400x400mm, 400x600mm, 400x800mm, 600x800mm
150lbs
-
-1°/+15°
-
1.9"
SPCC

W63-T
W63-T
VESA:400X600 Max Load:125lbs
Compare
W60-T
W60-T
VESA:400X450 Max Load:100lbs
Compare
W63-F
W63-F
VESA:400X600 Max Load:125lbs
Compare
W42F
W42F
VESA:200X200 Max Load:60lbs
Compare

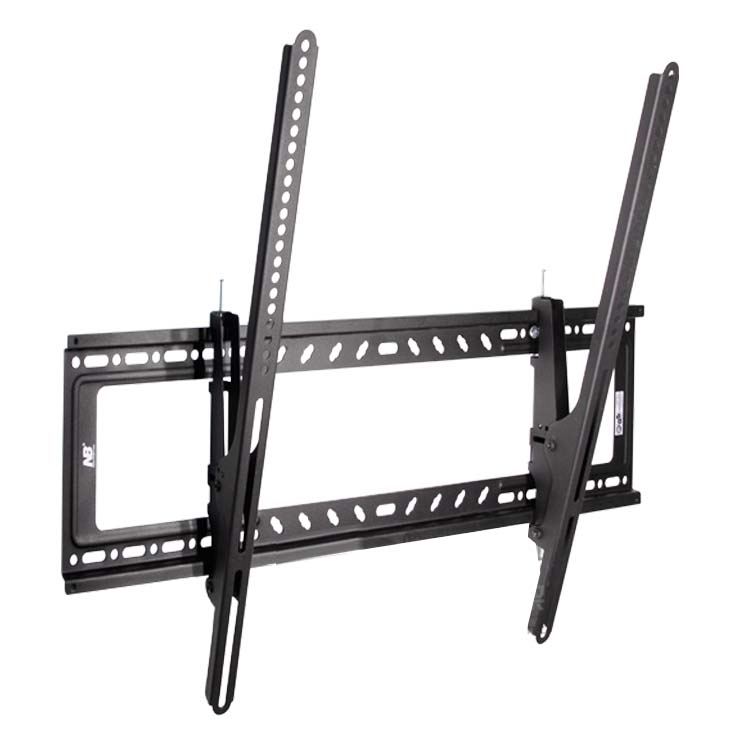

·Fits most 42"-90" flat panel TV

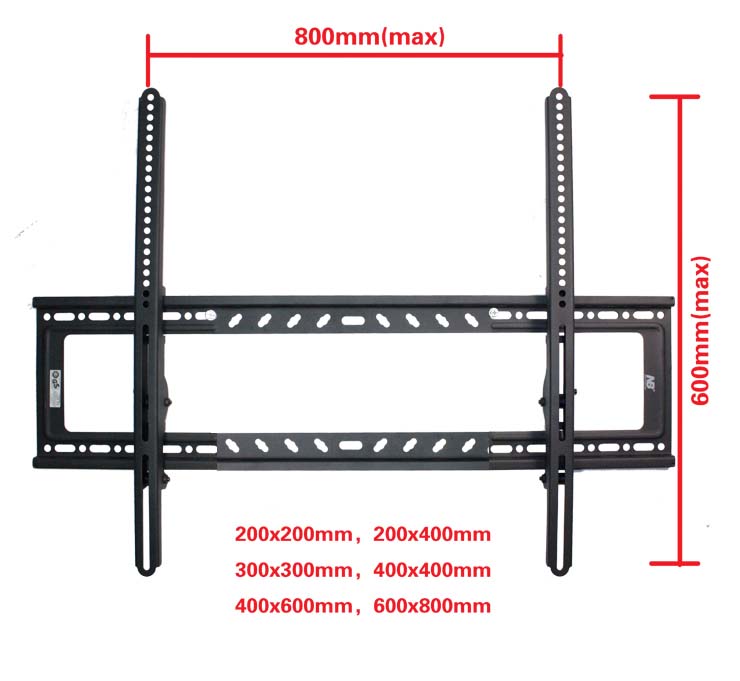

·VESA compliance: 75×75 ,100×100, 100×200,200×200,200×400,300×400,400×400,400×600,400×800,600×800(max)

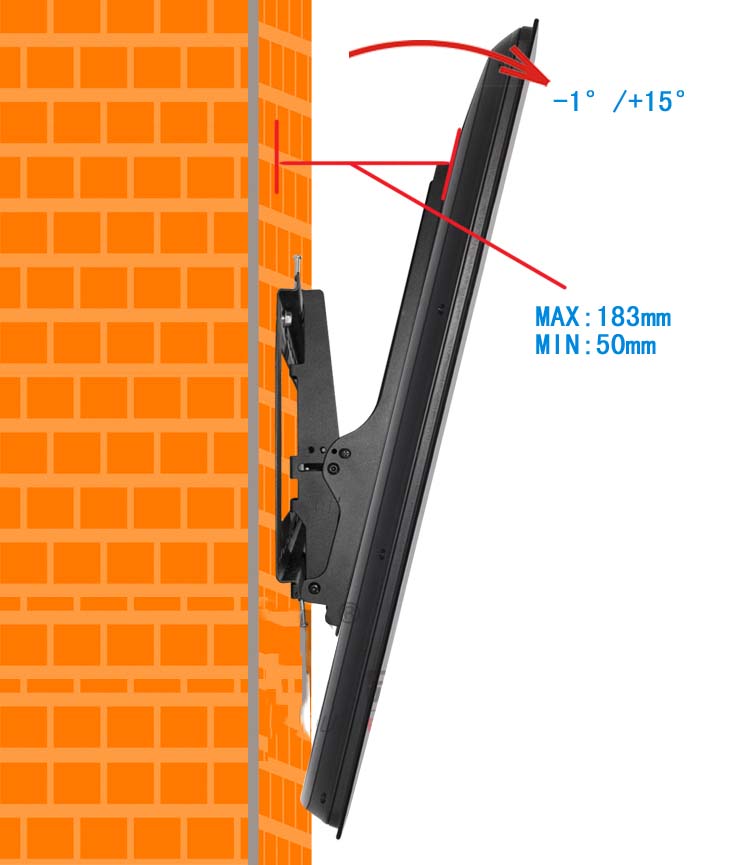

·Tilt angle : -1°/+15°
·Material : SPCC

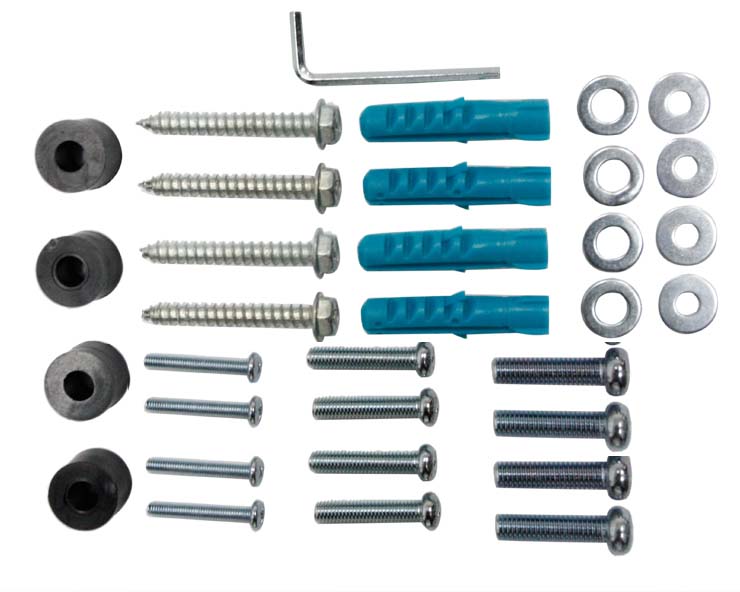

·Mounting and installation hardware supplied
·Weight capacity : 150lbs
·Finished : coating finished
·Color : black / silver
·Ships : Mount ships completely pre-assembled
